CHAT

TXT PROTO

The implementation of TXT CHAT protocol is trying to be informative but not excessive, it should take care of run-time edge cases but not too stable. TXT protocol is dedicated for demo purposes and doesn't support file upload and voice calls.


 $ wscat --no-check -c wss://chat-2.n2o.dev:8042/ws
 > HELP
 < N2O <user>
 | SEND <user> <msg>
 | BOX
 | CUT <id>.
 > N2O maxim
 < USER maxim
 > SEND vlad HELO
 < ERROR user doesn't exist.
 > N2O vlad
 < USER vlad
 > SEND maxim OK
 < NOTIFY vlad:maxim:1556151953113322286:OK
 < ACK "1556151953113322286"
 > N2O maxim
 < USER maxim
 > BOX
 < LIST
 vlad:maxim:1556151953113322286:OK
 > SEND maxim this is me
 < NOTIFY maxim:maxim:1556152151055371152:this is me
 < ACK "1556152151055371152"
 > SEND maxim back again
 < NOTIFY maxim:maxim:1556152157283311935:back again
 < ACK "1556152157283311935"
 > BOX
 < LIST
 vlad:maxim:1556151953113322286:OK
 maxim:maxim:1556152151055371152:this is me
 maxim:maxim:1556152157283311935:back again
 > CUT 1556152157283311935
 < ERASED 3
 > BOX
 < LIST
 >

BER ASN.1 PROTO


 ROSTER DEFINITIONS IMPLICIT TAGS ::= BEGIN

    P2P ::= SEQUENCE { dst OCTET STRING }
    MUC ::= SEQUENCE { dst OCTET STRING }
    Adr ::= SEQUENCE { src OCTET STRING,
                       dst CHOICE { muc [0] MUC,
                                    p2p [1] P2P } }
    Pub ::= SEQUENCE { key OCTET STRING, adr Adr,
                       tag OCTET STRING, bin OCTET STRING }
    Sub ::= SEQUENCE { key OCTET STRING, adr Adr }
    Cut ::= SEQUENCE { id  OCTET STRING }
    N2O ::= SEQUENCE { tok OCTET STRING }
    Ack ::= SEQUENCE { lex OCTET STRING }
    Nak ::= SEQUENCE { key OCTET STRING }
    Msg ::=   CHOICE { n2o [0] N2O,
                       ack [1] Ack,
                       nak [2] Nak,
                       pub [3] Pub,
                       sub [4] Sub,
                       cut [5] Cut }
 END

CHAT is written in Erlang/OTP and supports RocksDB or Mnesia databases.

APP SPEC

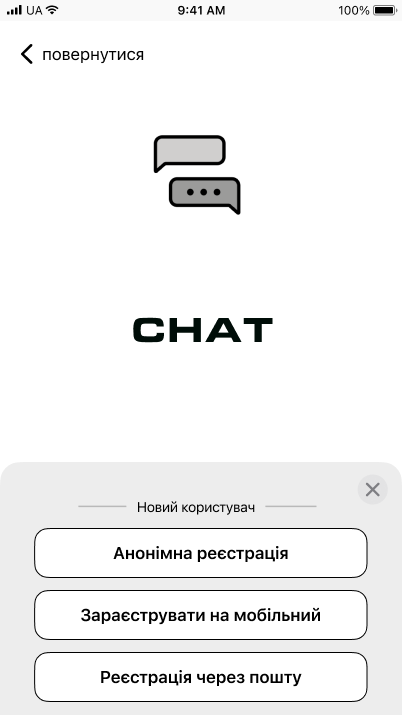

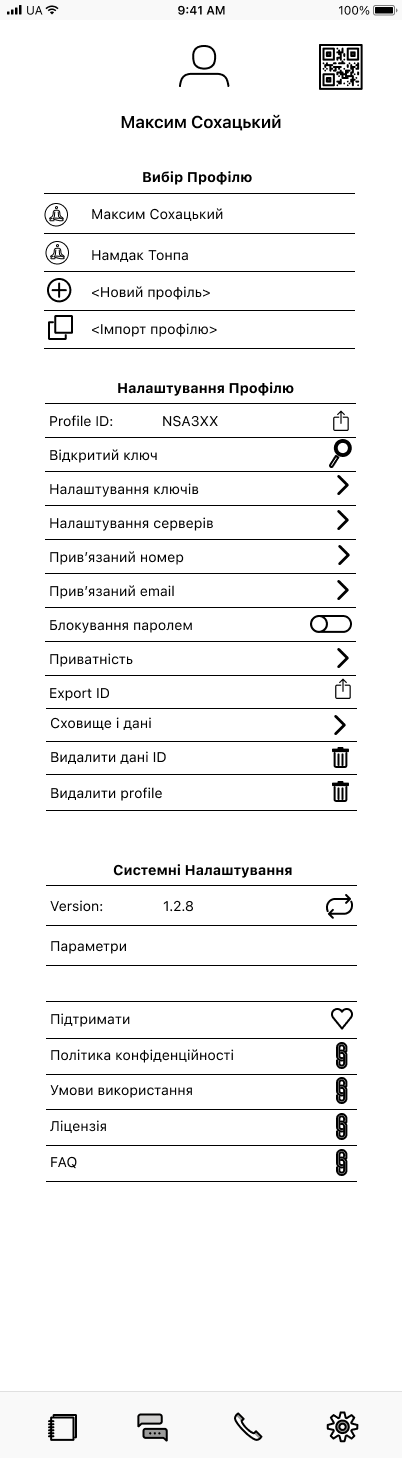

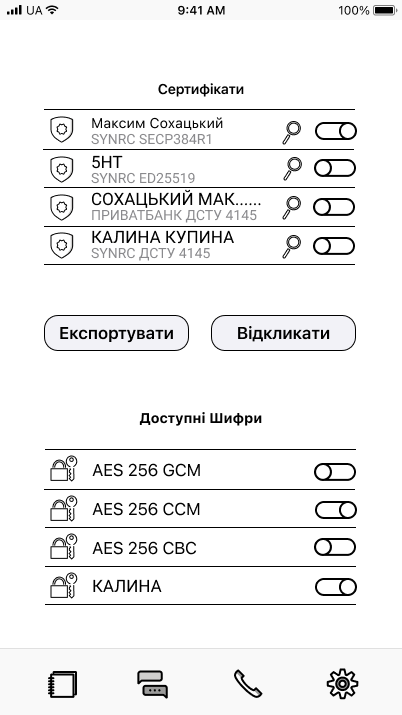

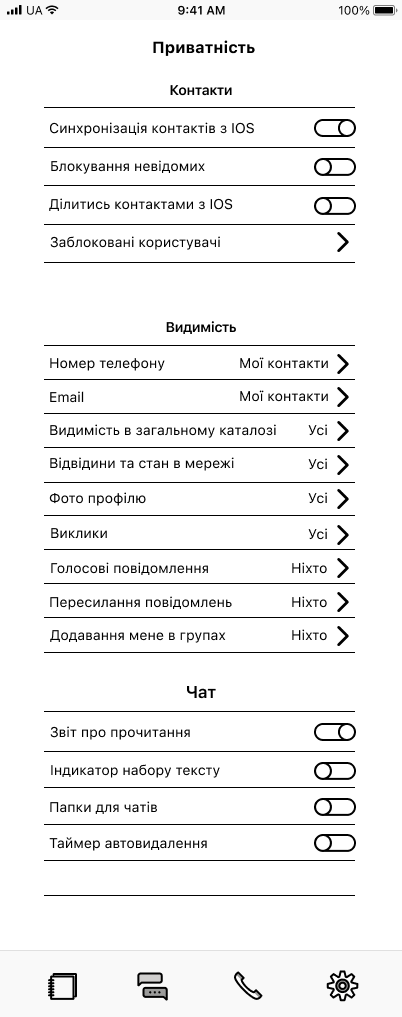

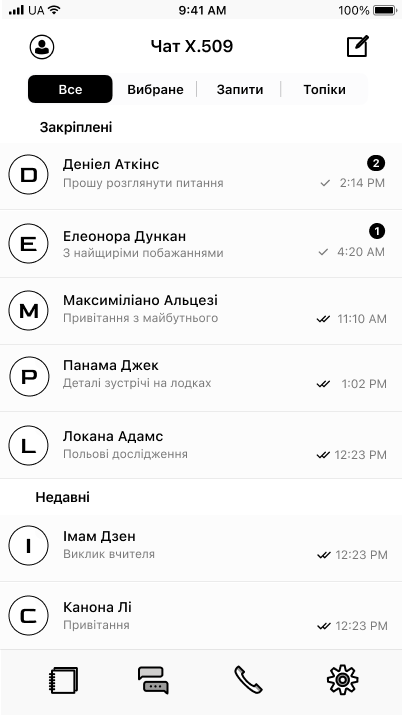

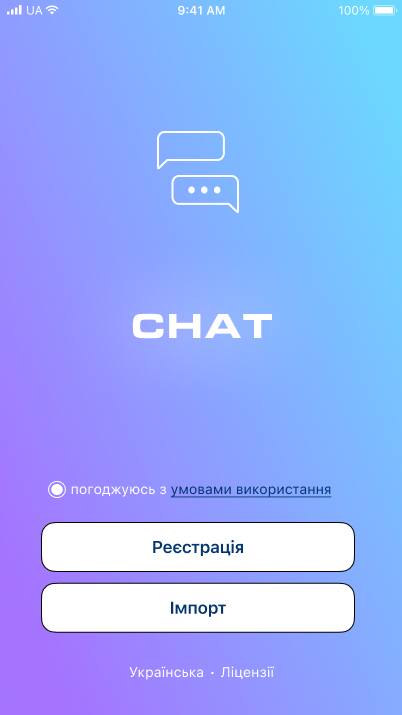

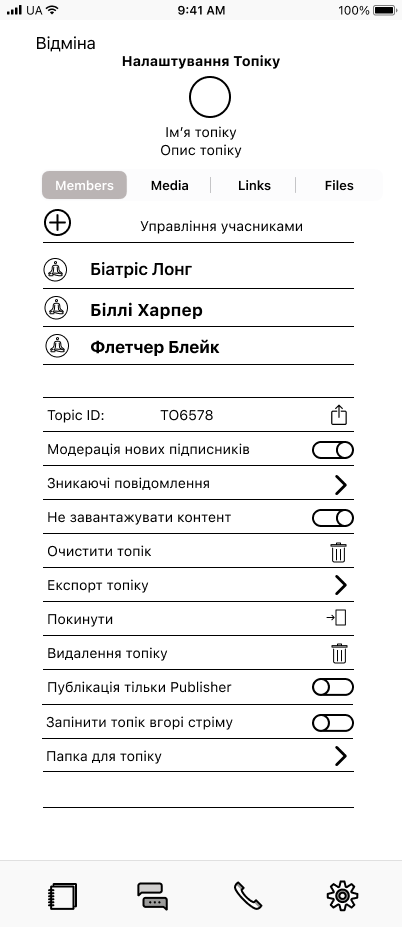

GUI.PDF
